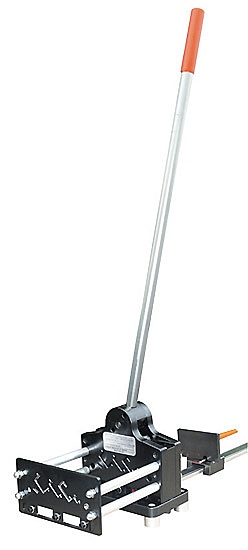

Combined manual DIN rail cutting or drilling machine
Consult the table of machine and tooling products:
Shearing/punching machine grouping the three most current profiles together on the same die:
Asymmetrical DIN profiles 32X15X1.5 mm.
Symmetrical DIN profiles 35X15X1.5
Symmetrical DIN profiles 35X7.5X1
Cut rails cleanly and effortlessly, then drills 6.4X12 mm holes in a second operation.
Machine supplied with one 1 metre straightedge and 1 length adjustment stop.
RELATED PRODUCTS
- COUP'DIN GH3-M
- COUP'DIN GH3-E
- COUP'DIN GH3-P
COMBINED DIN RAIL CUTTING AND DRILLING
| DESCRIPTION | REFERENCE |
| MULTI-RAIL MACHINE | 03001GPROFIL |
| This machine can cut or punch | |
| Symmetrical Din 35 x 15 | |
| Symmetrical Din 35 x 7.5 | |
| Asymmetrical Din 32 x 15 | |
| Symmetrical Din 15 x 5,5 and copper 10 x 3 | |
| Transverse and longitudinal punch 12X6.4 | |
| Machine delivered with 1000 mm rule + end stop |
