7-head punching bench for aluminum sheets and profiles

7-head punching bench for aluminum sheets and profiles

GRANGIER manufactures multi-head punching benches for fine sheet metal work on request.

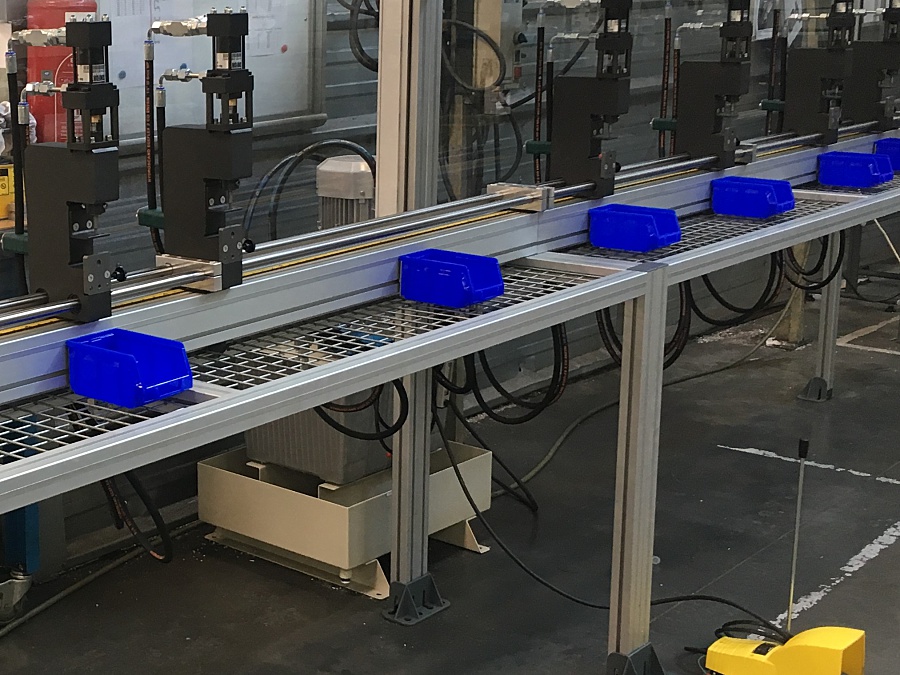

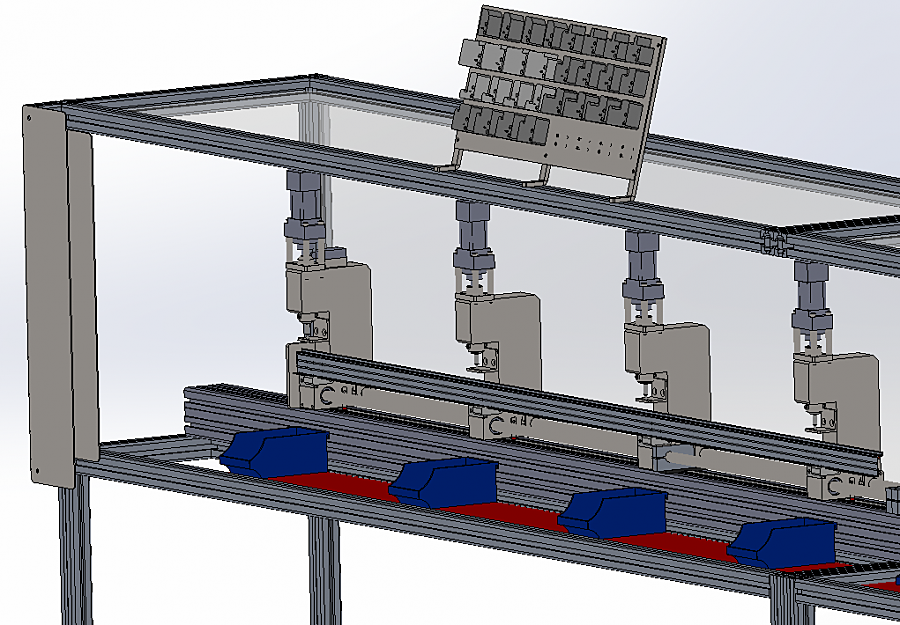

For one of our customers, we have made a customised punching bench 3.5 metres long. It is equipped with 7 Ø 6 drilling heads with a quickly adjustable centre distance. It allows 7 holes to be drilled simultaneously in 60x30 aluminium profiles with a thickness of 2 mm.

This punching bench is equipped with an electric pedal control, double-acting hydraulic cylinders and a 380v control unit for precise work in complete safety for the operator, with optimum efficiency.

It should be noted that this machine can also drill 2mm thick steel profiles.

We can also build a multi-head punching bench for cutting thin sheets and profiles.
