TRISTAR
Dies-punches, hydraulic pump for STEEL
Consult the table of machine and tooling products:
• A complete range of punches and dies for 2 mm thicknes steel
• Complete boxes, or retail
• See the list of screws and hydraulic pumps
RELATED PRODUCTS
- CT2-h 80 electro-hydraulic punching machine
- CT2-h electro-hydraulic punching machine
- CT2-m manual punching machine
- round and rectangular punches for standard steel
- round and rectangular punches for stainless steel
- "non-standard" round and rectangular punches
- manual hydraulic pump and cutter sets for stainless steel tristar plus
- portable hydraulic pump for akku punch
- punching cylinder for punching machines with hydraulic foot pump
- hole saw
COMPLETE TRISTAR PUMPS AND PUNCHES BOXES
DESCRIPTION | REFERENCE |
Compact hand hydraulic punching set for steel TRISTAR | |
PG | |

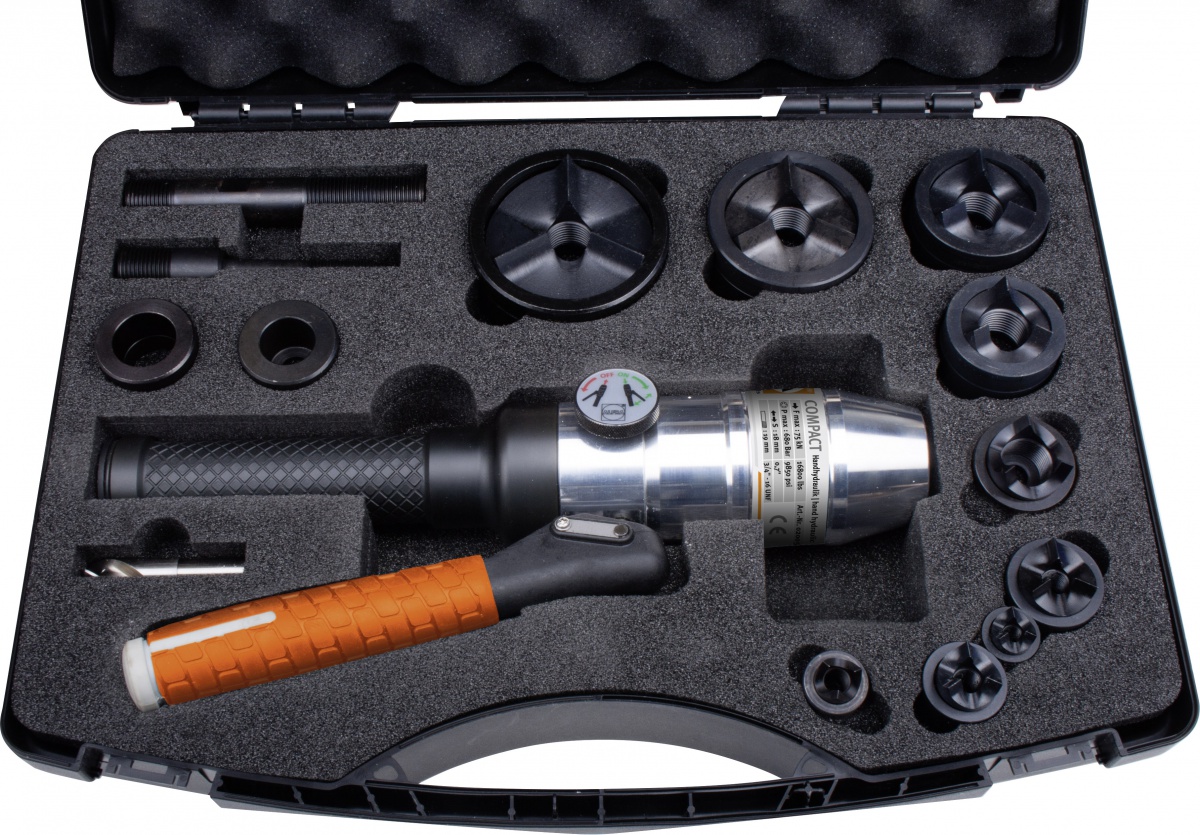

"Compact" straight head, with 9 punches/dies Tristar PG 9 to 48 01752 | 01752 |

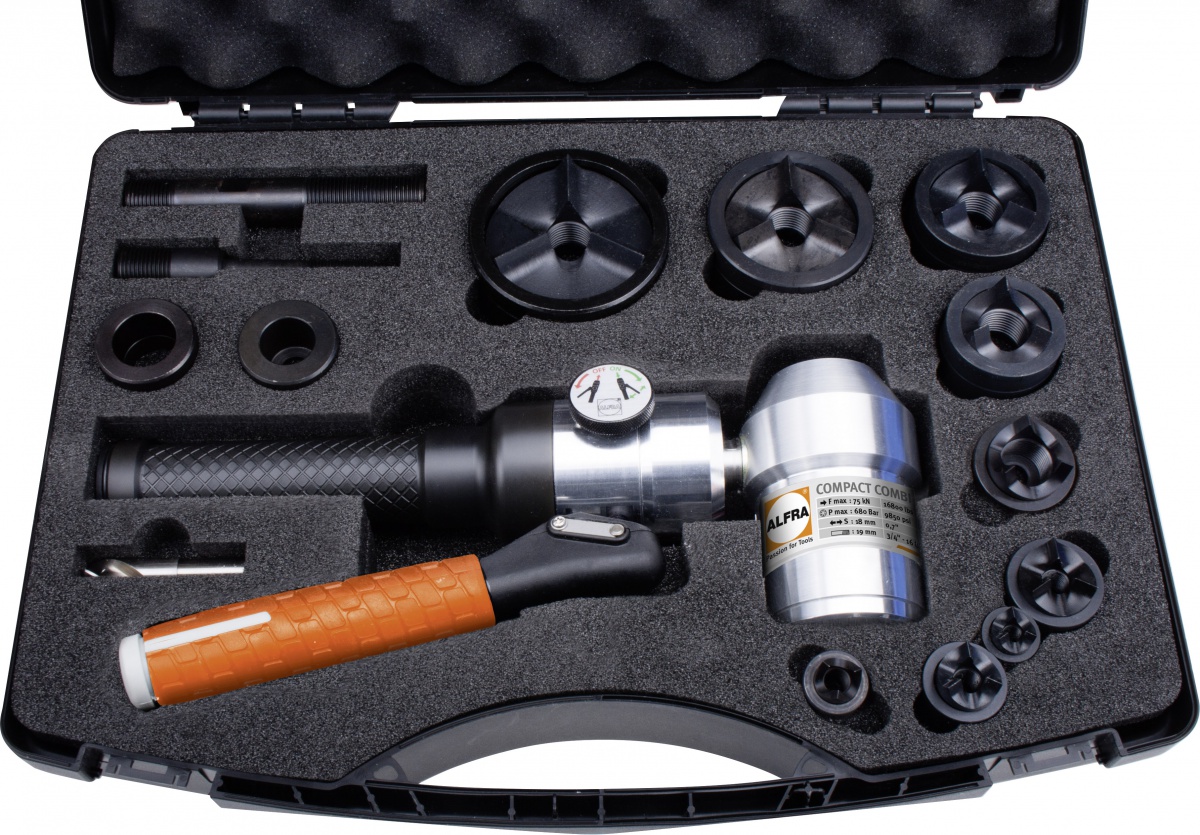

"Compact Combi" angular head, 360° rotatable with 9 punches/dies Tristar PG 9 to 48 | 01753 |
ISO | |

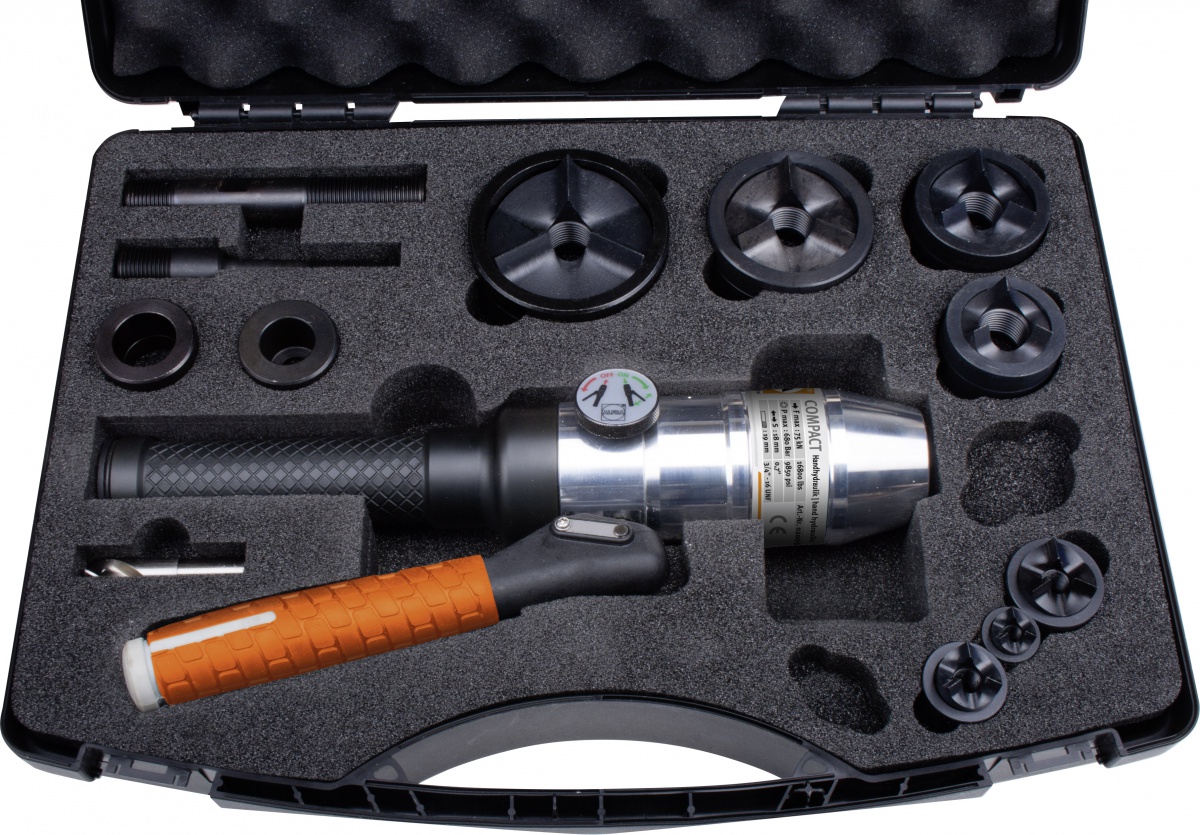

"Compact" straight head, with 7 punches/dies Tristar ISO 16 to 63 | 01758 |

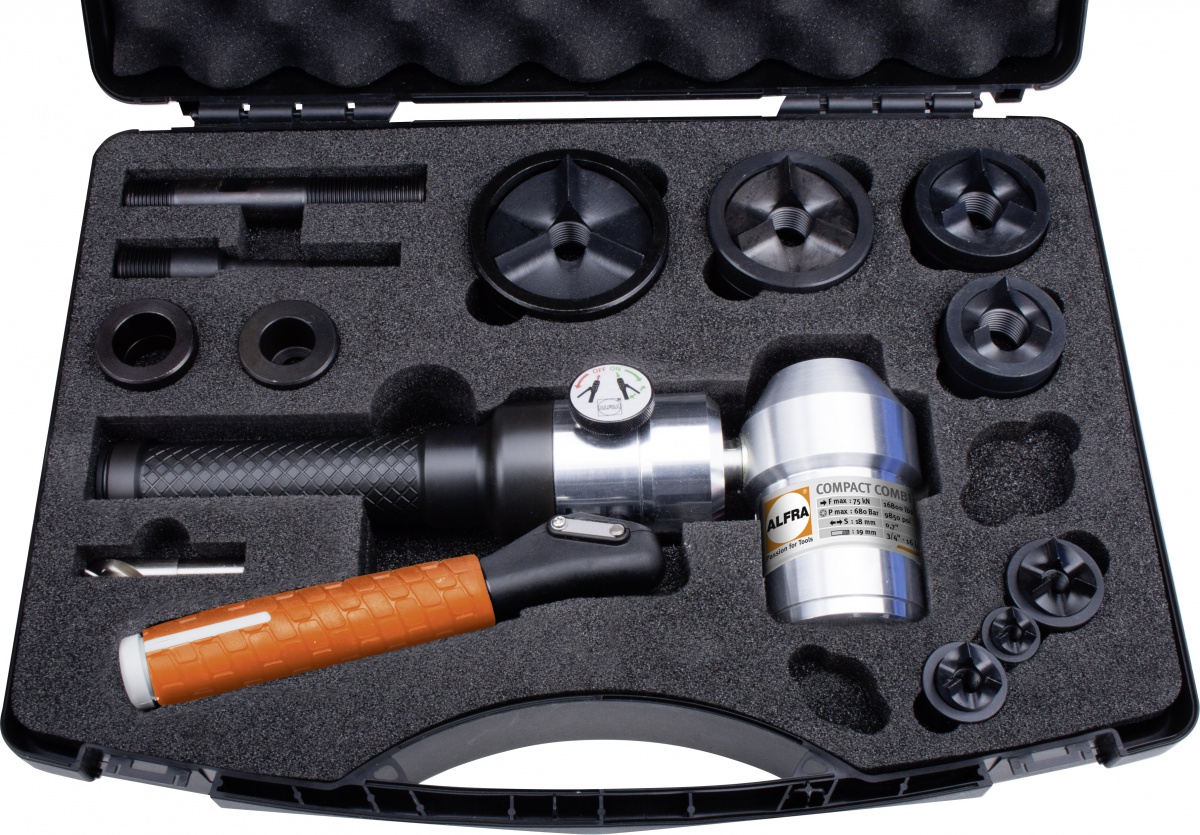

"Compact Combi" angular head, 360° rotatable with 7 punches/dies Tristar ISO 16 to 63 | 01759 |

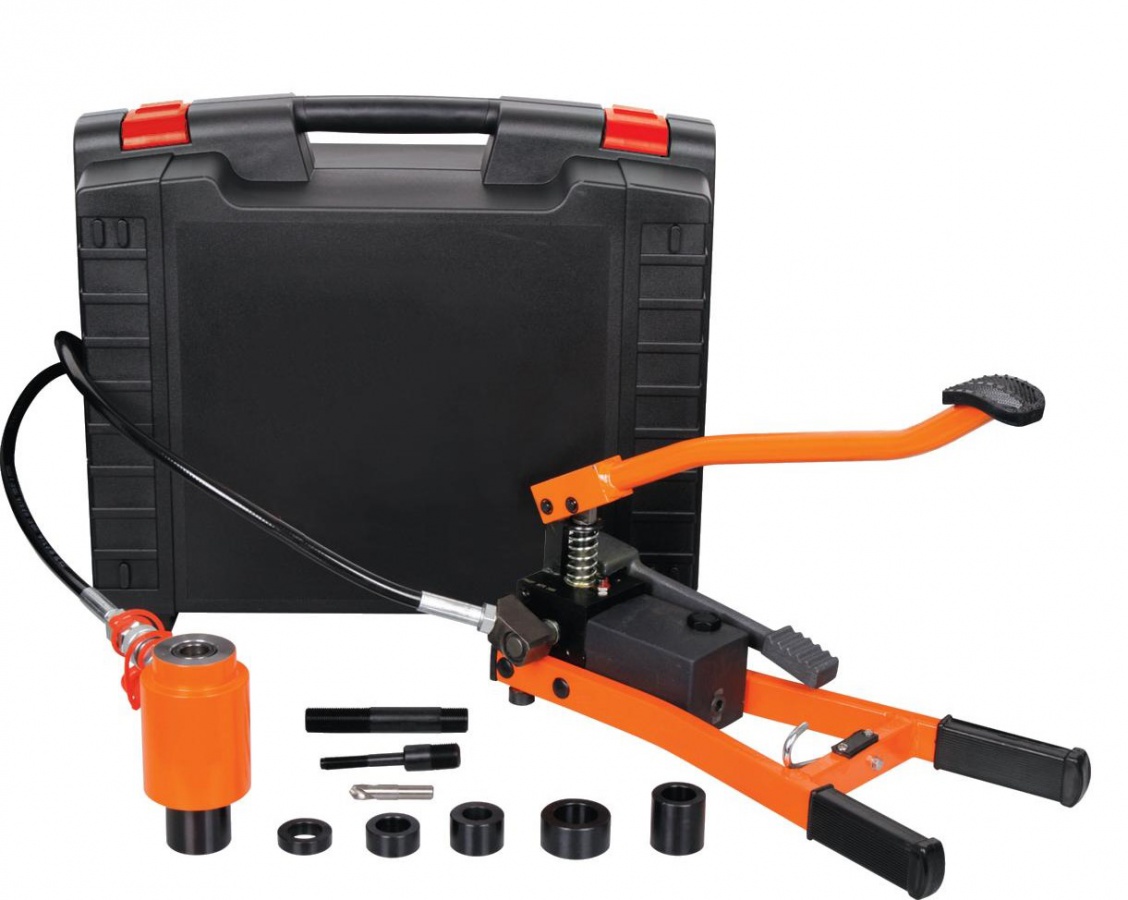

Foot pump AEP-1 with hydraulic cylinder | |
With transport box, hydraulic hose 2,8 m, drill D.11 mm, 5 distance bushes, hydraulic screws 9.5X19 and 19 mm, hydraulic cylinder | 02120 |
Hydraulic cylinder (spare part) | 02012 |

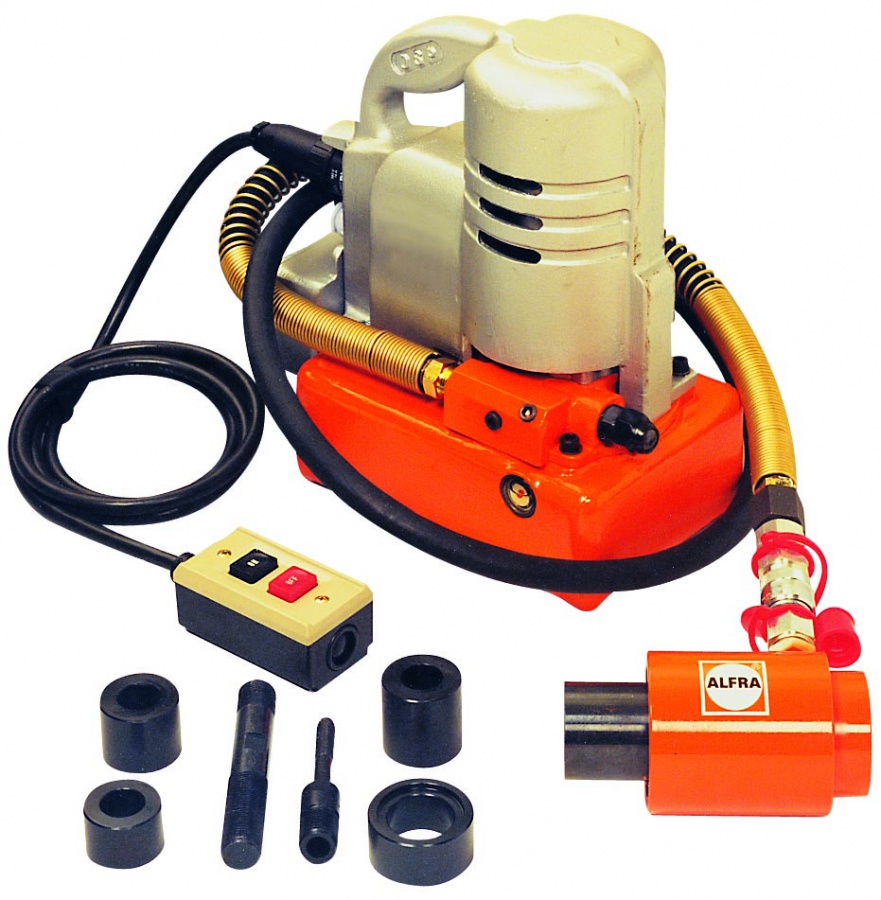

Electro-hydraulic puncher DSP-120 | |
Hydraulic pump 240 V 700 bars, two stage operation, hose 1,8 m, cylinder , 11 mm drill, 5 distance bushes, axles 9,5 and 19 mm | 02025 |
Electro-Hydraulic Pump 240v/10100 psi, 1.8 m hydraulic hose, hand | 02027 |

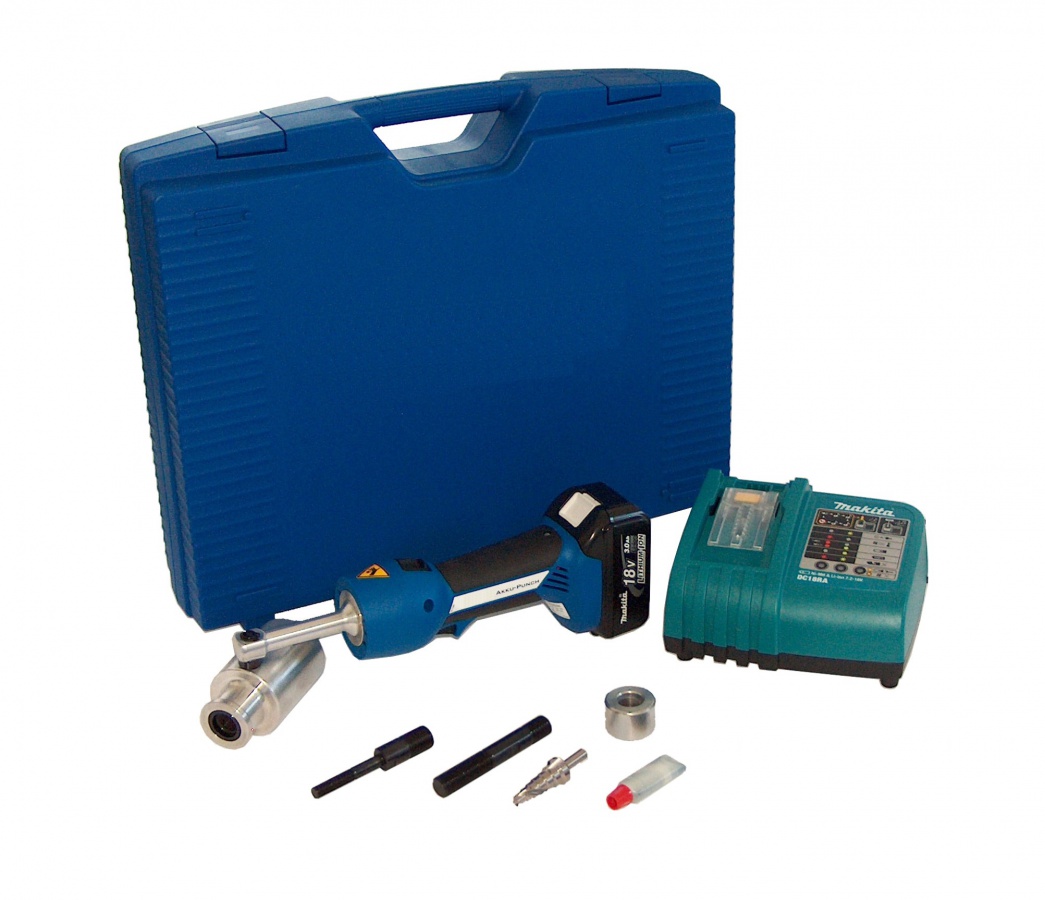

Akku Compact Flex puncher 18 V | |
Complete set in transport case, with 1 batteries, 2 hydraulic screws, 11 mm drill, 3 distance bushes |
02082 |
Extra battery | |
Special screw for 92x92 punch | 01395 |
Special distance bush for 92x92 punch | 01396 |
Set of Tristar punches : | |
6 punches/dies PG 9 to 21 + Ø30.5 | 01750 |
7 punches/dies M 16 to 63 | 01757 |
Hydraulic screws: | |
Ø9.5 X 75mm | 02009 |
Ø19 X 75mm | 02002 |
adapter Ø 19 X 9,5 | 01353 |
