Electrician's set complete with hydraulic pump and cutters for stainless steel tristar more

TRISTAR PLUS

Punches and dies, hydraulic pumps for STAINLESS STEEL
Consult the table of machine and tooling products:

• Manufactured from heavy duty steel, for punching on STAINLESS STEEL and mild steel too
• Complete boxes, or retail
• See the list of screws and hydraulic pumps

RELATED PRODUCTS

- CT2-h 80 electro-hydraulic punching machine
- CT2-h electro-hydraulic punching machine
- CT2-m manual punching machine
- round and rectangular punches for standard steel
- round and rectangular punches for stainless steel
- "non-standard" round and rectangular punches
- manual hydraulic pump and cutter sets for tristar steel
- portable hydraulic pump for akku punch
- punching cylinder for punching machines with hydraulic foot pump
- hole saw

COMPLETE TRISTAR PUNCHING MACHINE AND PUNCH BOXES

DESCRIPTION REFERENCE

Compact hand hydraulic punching set for stainless steel TRISTAR PLUS
PG

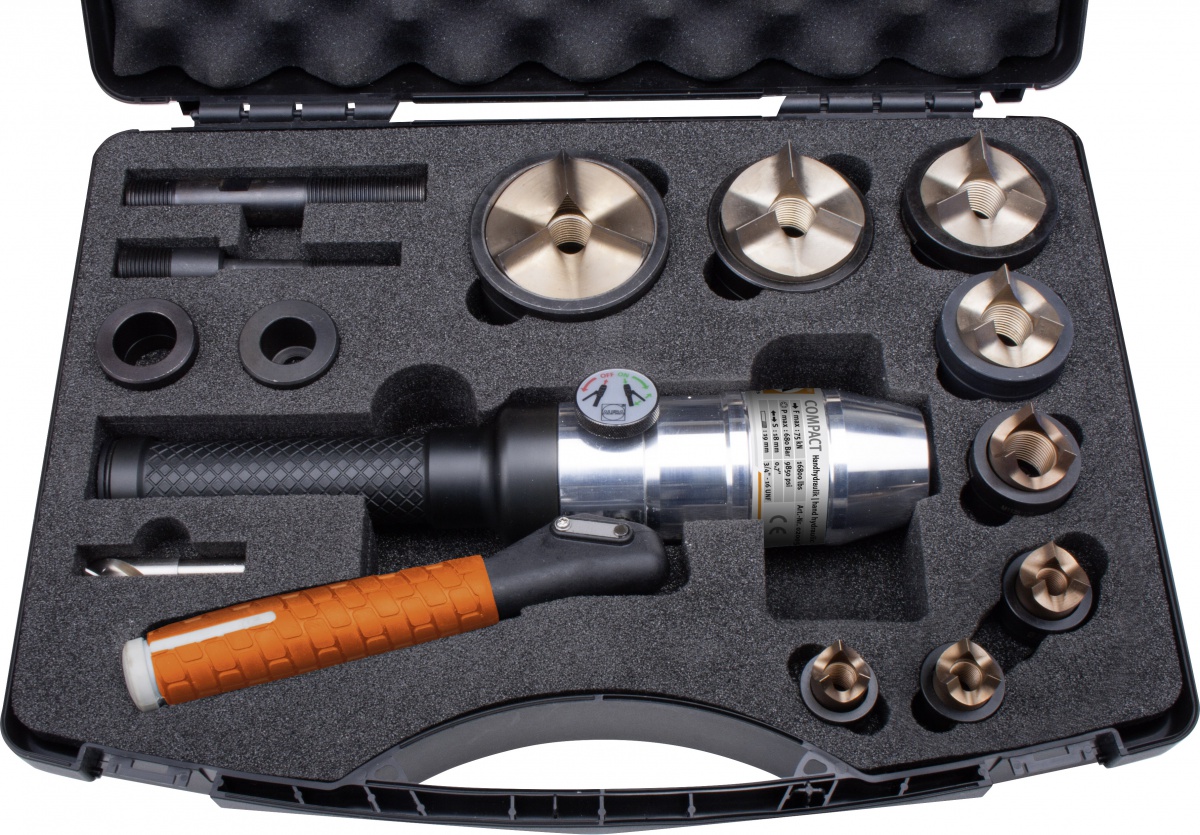

"Compact" straight head, with 8 punches/dies  Tristar Plus PG 9 to 42 01650

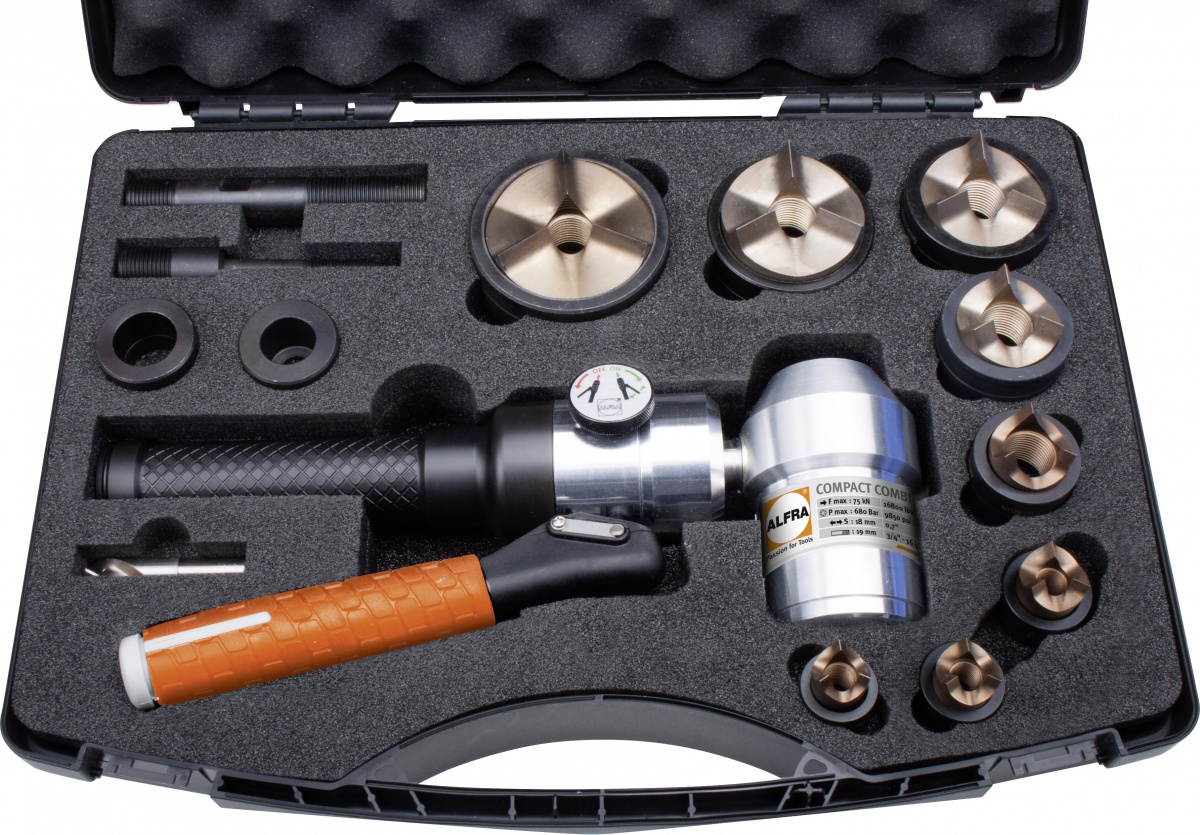

"Compact Combi" angular head, 360° rotatable with 8 punches/dies Tristar Plus PG 9 to 42 01651
ISO

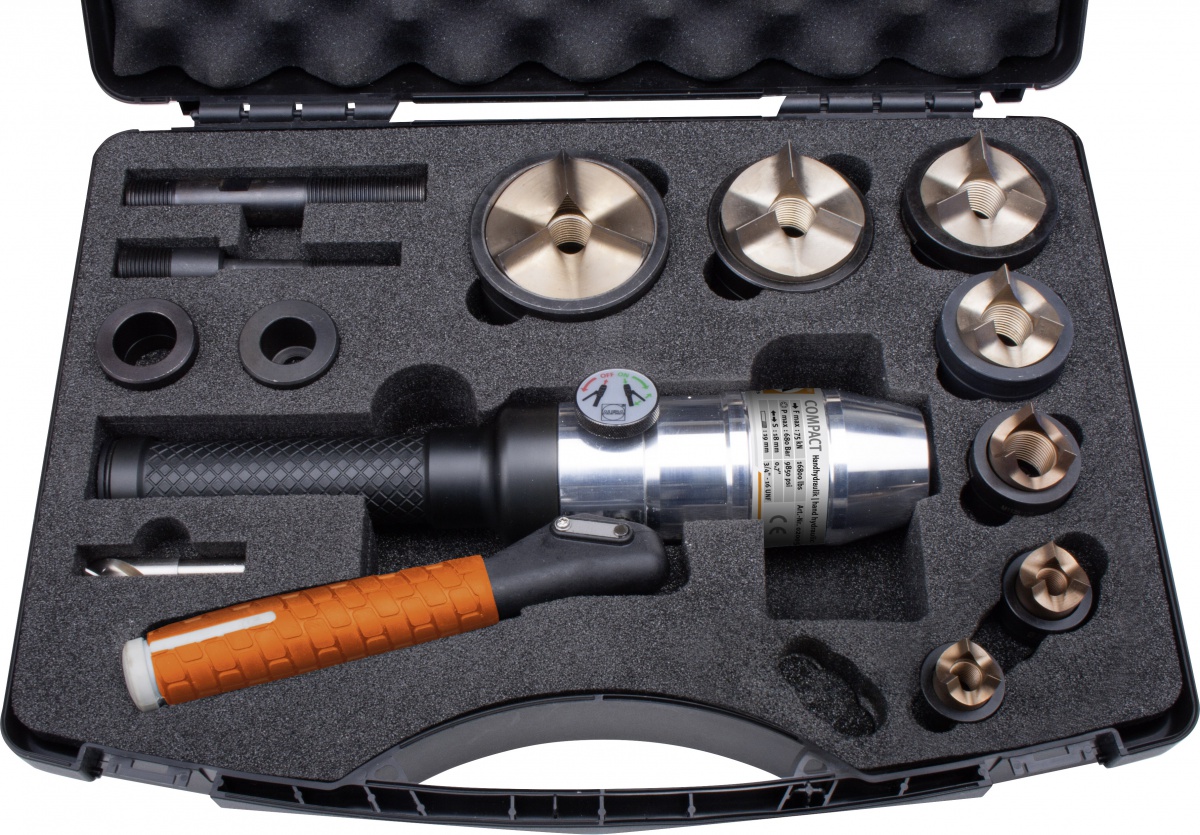

"Compact" straight head, with 7 punches/dies  Tristar Plus ISO 16 to 63 01654
"Compact Combi" angular head, 360° rotatable with 7 punches/dies Tristar Plus ISO 16 to 63 01655

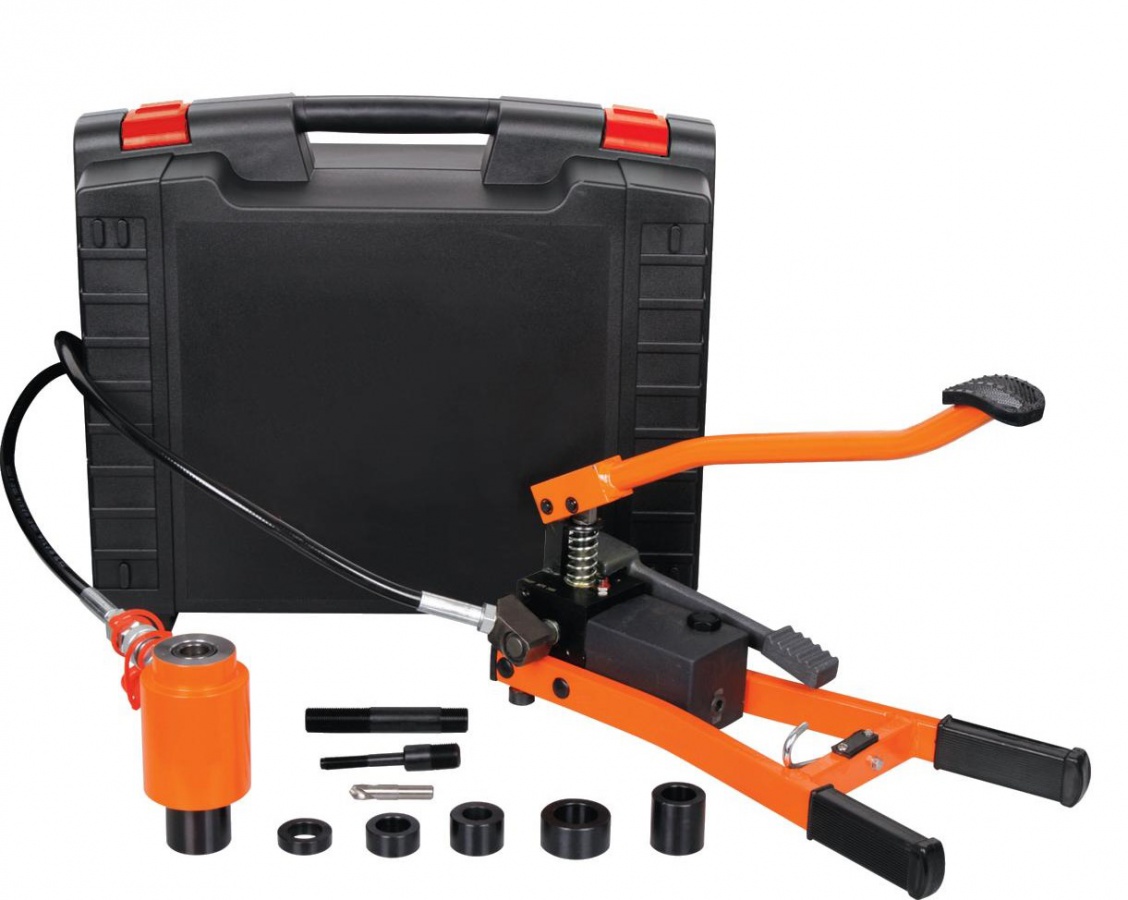

Foot pump AEP-1 with hydraulic cylinder
With transport box, hydraulic hose 2,8 m, drill D.11 mm, 5 distance bushes, hydraulic screws 9.5X19 and 19 mm, hydraulic cylinder 02120
Hydraulic cylinder (spare part) 02012

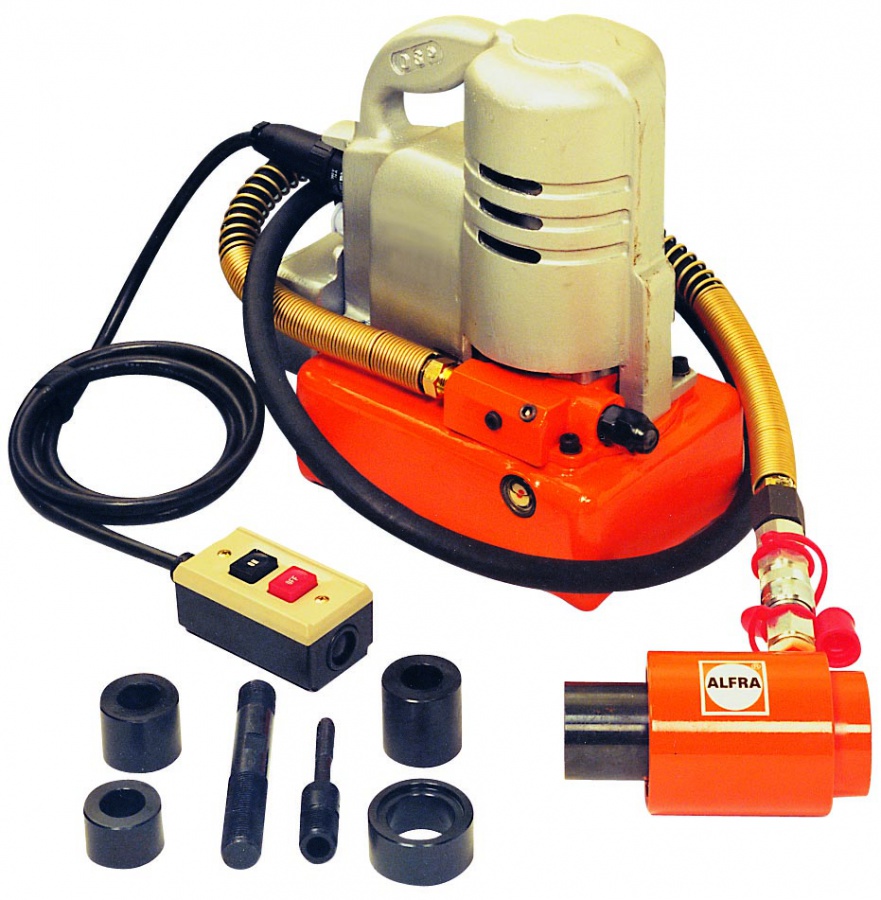

Electro-hydraulic puncher DSP-120
Hydraulic pump 240 V 700 bars, two stage operation, hose 1,8 m, cylinder , 11 mm drill, 5 distance bushes, axles 9,5 and 19 mm 02025
Electro-Hydraulic Pump 240v/10100 psi, 1.8 m hydraulic hose, hand switch 02027

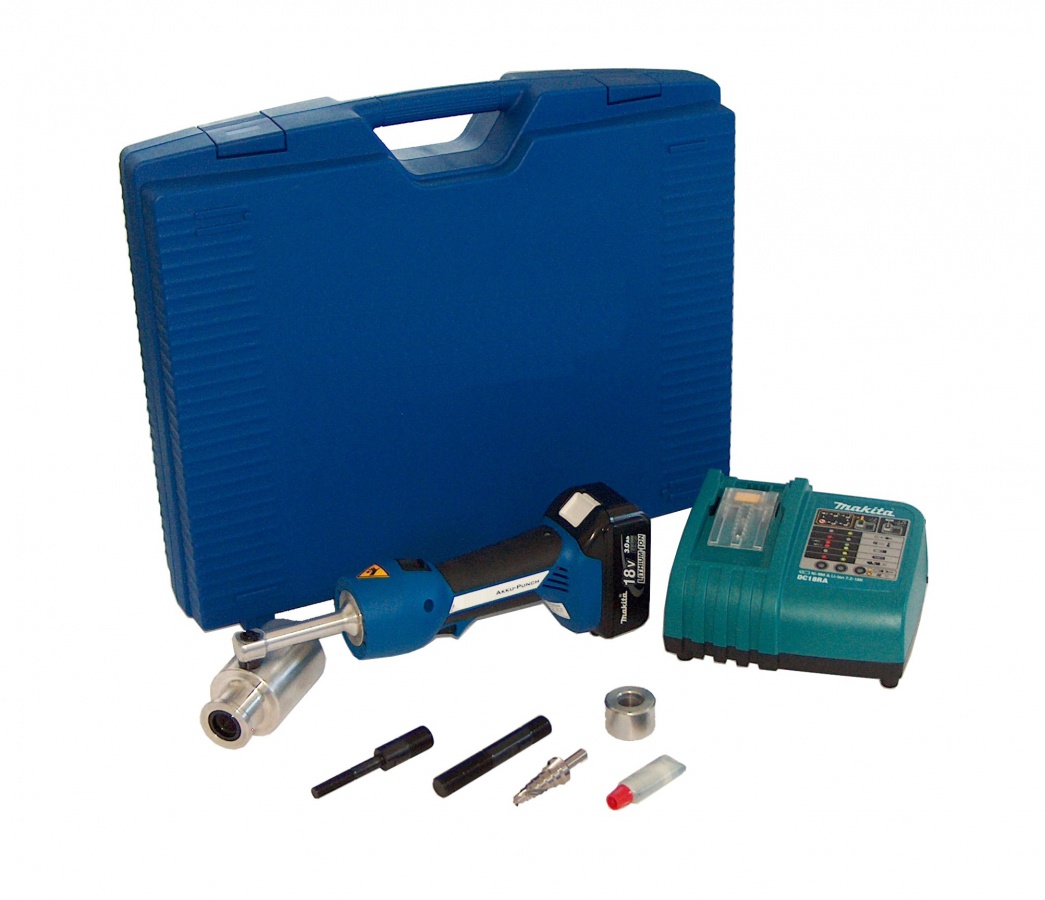

Akku Compact puncher  18 V
Complete set in transport case, with 2 batteries, 2 hydraulic screws, 11 mm drill, 3 distance bushes 02070
Extra battery 02071
Special screw for 92x92 punch 01395
Special distance bush for 92x92 punch 01396

Set of Tristar punches :
6 punches/dies PG 9 to 21 + Ø30.5 01750
7 punches/dies M 16 to 63 01757

Hydraulic screws:
Ø9.5 X 75mm 02002
Ø11.1 X 75 mm (for Tristar Plus punches up to Ø25.5) 01424
Adapter Ø19 X 11.1 01425



TRISTAR PLUS PUNCH-DIE

DESIGNATION DESTINATION REFERENCE
Ø 15.2 PG9 01600
Ø 16.2 M16 01656
Ø 18.6 PG11 01603
Ø 20.4 PG13/M20 01606
Ø22.5 PG16 01609
Ø 25.4 M25 01659
Ø 28.3 PG21 01612
Ø 30.5   01615
Ø 32.5 M32 01662
Ø 37 PG29 01621
Ø 40.5 M40 01665
Ø 47 PG36 01627
Ø 50.5 M50 01668
Ø 54 PG42 01633
Ø 60 PG48 01636
Ø 63.5 M63 01671
Ball- bearing screw 11.1x60   01342
Ball- bearing screw 19x55 (Ø37max) 01340
Ball- bearing screw 19x75 (Ø 40.5 to 60) 01341
Hydraulic screw Ø 19x11.1   02007
Hydraulic screw Ø 11.1x75   01424
Adaptater Ø 19x11.1   01425
Hydraulic screw Ø 19x75   02002
