Punches and dies for steel
Dies-punches, hydraulic pump for STEEL
Consult the table of machine and tooling products:
• A complete range of punches and dies for 2 mm thicknes steel
• Complete boxes, or retail
• See the list of screws and hydraulic pumps
RELATED PRODUCTS
- CT2-h 80 electro-hydraulic punching machine
- CT2-h electro-hydraulic punching machine
- CT2-m manual punching machine
- round and rectangular punches for stainless steel
- "non-standard" round and rectangular punches
- manual hydraulic pump and cutter sets for tristar steel
- manual hydraulic pump and cutter sets for stainless steel tristar plus
- portable hydraulic pump for akku punch
- punching cylinder for punching machines with hydraulic foot pump
- hole saw

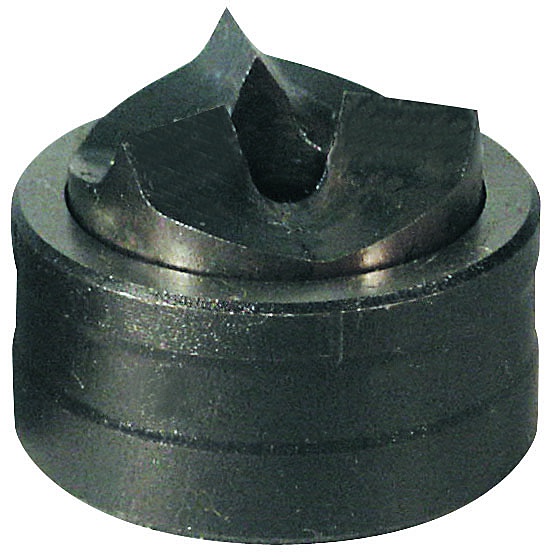

The TRISTAR PUNCH-DIE in detail
DESIGNATION | DESTINATION | REFERENCE |
Ø 12.5 | M12 | 01770 |
Ø 12.7 | PG7 | 01003004 |
Ø 15.2 | PG9 | 01681682 |
Ø 16.2 | M16 | 01684685 |
Ø 18.6 | PG11 | 01687688 |
Ø 20.4 | PG13/M20 | 01690691 |
Ø 22.5 | PG16 | 01693694 |
Ø 22.5 with anti-rotating notch | 01420 | |
Ø 25.4 | M25 | 01696697 |
Ø 28.3 for Ø 9.5 screws | PG21 | 01699700 |
Ø 28.3 for Ø 19 screws | PG21 | 01702614 |
Ø 30.5 | 01779 | |
Ø 32.5 | M32 | 01709710 |
Ø 37 | PG29 | 01714623 |
Ø 38 | 01133 | |
Ø 40.5 | M40 | 01716717 |
Ø 42,8 | 01157 | |
Ø 43,2 | 01161 | |
Ø 47 | PG36 | 01721629 |
Ø 49,6 | 01169 | |
Ø 50.5 | M50 | 01737738 |
Ø 54 | PG42 | 01728727 |
Ø 61,5 | 01205 | |
Ø 60 | PG48 | 01730638 |
Ø 63.5 | M63 | 01740741 |
From 68 mm round punch, use an hydraulic pump | ||
Ø 68 | 01241 | |
Ø 70 | 01221 | |
Ø 75,5 | M75 | 01225 |
Ø 76,2 | 01229 | |
Ø 80 | 01237 | |
Ø 82 | 01245 | |
Ø 89 | 01251252 | |
Ø 92 | 01253254 | |
Ø100,5 | 01257258 | |
Ø115,5 | 01265266 | |
Ø120 | 01267268 | |

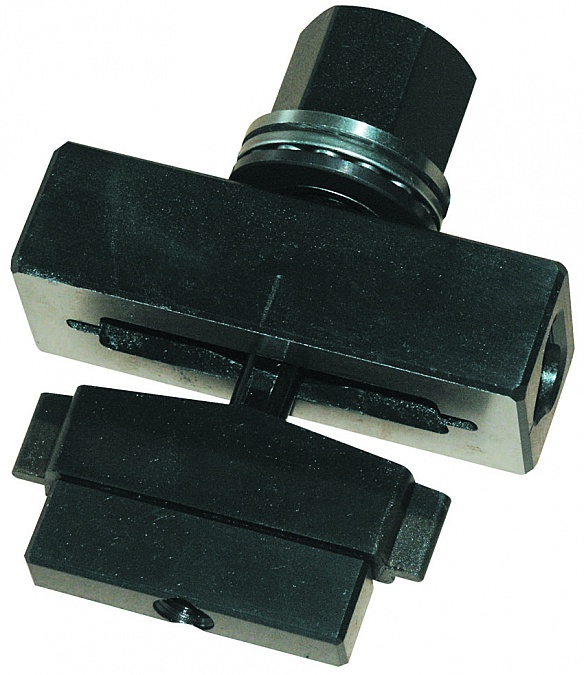

Ball-bearing screw 9.5 x 50 | 01339 | |
Ball-bearing screw 19 x 55 | (Ø37max) | 01340 |
Ball-bearing screw 19 x 75 | (Ø 40.5 to 60) | 01341 |
Hydraulic screw Ø 9.5 x 75 | 02009 | |
Hydraulic screw Ø 19 x 75 | 02002 | |
Adapter Ø 19 x 9.5 | 01353 | |

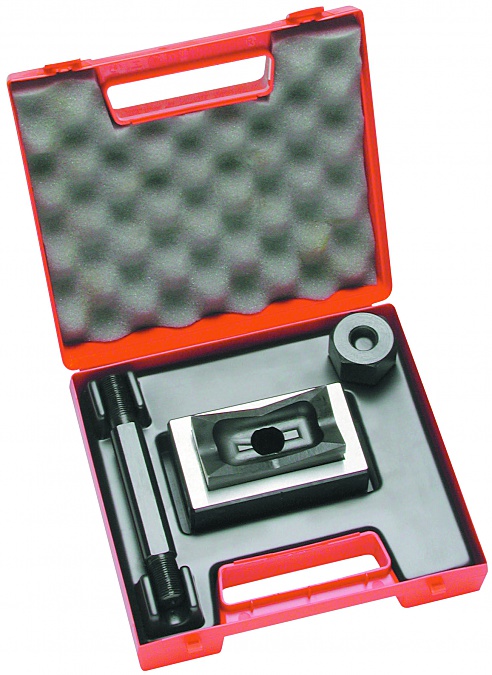

Set of punches and dies Tristar : | ||
6 punches and dies PG 9 to 21 + Ø30.5 mm and case | 01750 | |
7 punches and dies M 16 to 63 and transport case | 01757 | |
For special punches, give diameter, thickness, and material to punch |

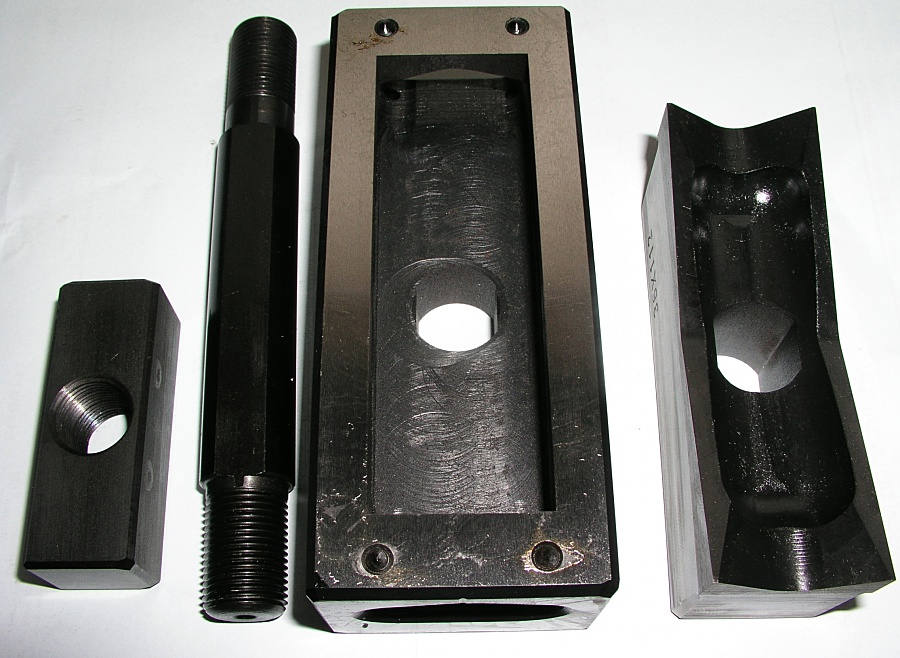

SET OF SQUARE AND RECTANGULAR PUNCHES + DIES FOR STEEL
SIZE OF THE PUNCH (MM.) | PROD.-NO. |
9,53X9,53 | 10402 |
12,7x12,7 | 01300 |
15,8x15,8 | 01301 |
17X19 | 01301 |
19x19 | 01302 |
21,8X25,8 | 01318 |
22X30 | 01319 |
22X42 | 01320 |
22,2x22,2 | 01303 |
22x45 | 01241 |
24x24 | 01331 |
25,4x25,4 | 01304 |
25X50 | 01332 |
30X30 | 10271 |
from 45,5x45,5 use an hydraulic pump | |
45.5 x 45.5 | 01313 |
45X92 | 01314 |
50,8x50,8 | 01306 |
68 x 68 | 01308 |
68X138 | 01330 |
92 x 92 | 01309 |
125x125 | 01431 |
138x138 | 01311 |
For heavy connectors: | |
4 centering pins included on the die for pre-marking the position of the 4 screws | |
36x52 | 01325 |
36x65 | 01326 |
36x86 | 01327 |
36x91 | 01323 |
36x112 | 01328 |
46x86 | 01322 |
46x112 | 01324 |
For Sub-D connectors: | |
19,8x11,3 | 01366 |
28,2x11,3 | 01367 |
41,9x11,3 | 01368 |
58,4x11,3 | 01369 |
55,7x13,9 | 01370 |
