This development from the hand-operated machine is a complete and compact solution to cover most door and box drilling needs.

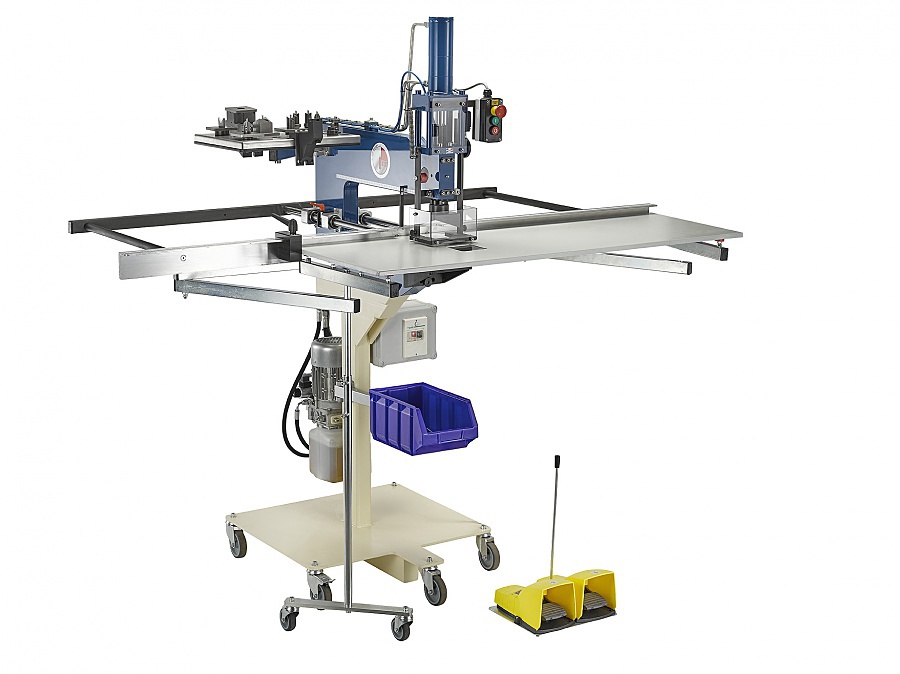

Free-standing machine on a mobile base,with a 230V hydraulic unit and double control pedal.
- Articulated arms with castors for moving the doors.

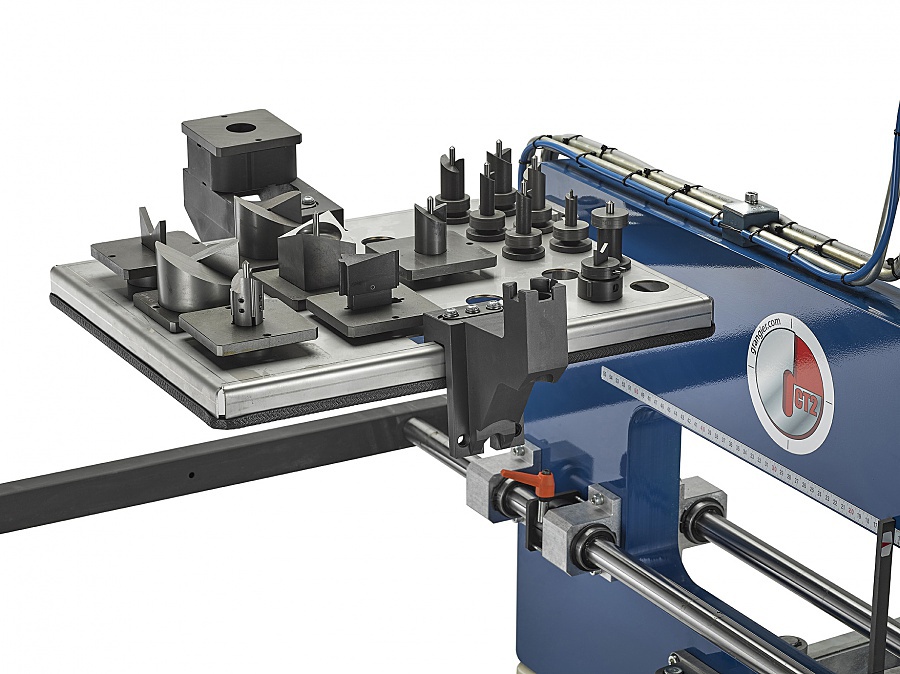

- X/Y straightedge with rulers and stop for working in series.
- Integrated centring pin .

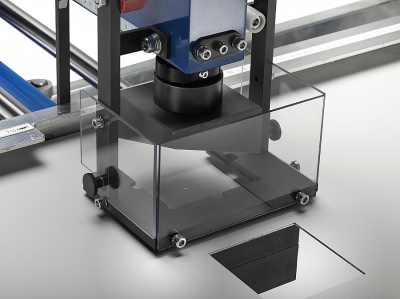

- The punch moves down at moderate speed, preventing operator positioning errors.

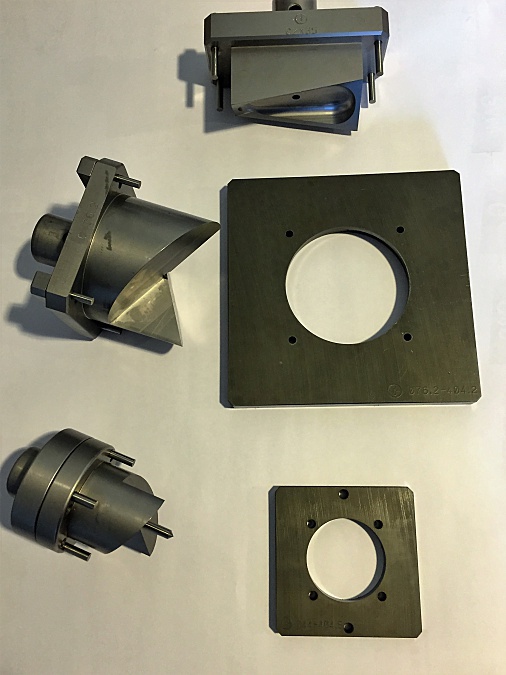

Range of punches and dies from 3 to 92X92 mm
Technical characteristics :
- Weight : 250 KG
- Measurements (without rule) : 800x720x1720
- Depth of the frame overhang : 510 mm.
- Punching capacity :
2 mm on steel or stainless steel up to 92x92 mm
4 mm on plastic or polyester
- CT2-h electro-hydraulic punching machine
- CT2-m manual punching machine
- round and rectangular punches for standard steel
- round and rectangular punches for stainless steel
- "non-standard" round and rectangular punches
- manual hydraulic pump and cutter sets for tristar steel
- manual hydraulic pump and cutter sets for stainless steel tristar plus
- portable hydraulic pump for akku punch
- punching cylinder for punching machines with hydraulic foot pump
- hole saw
