New copper busbar Work-Centre « DUO » for electrical cabinet and low voltage switchboards

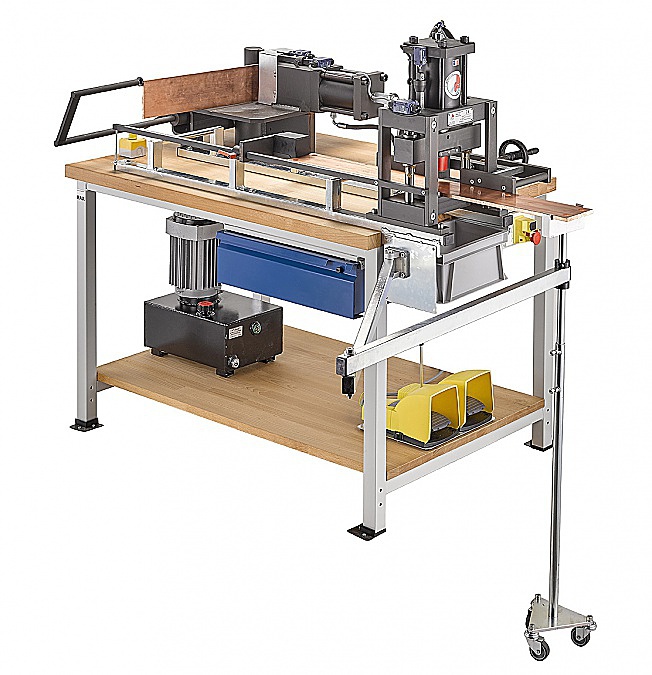

For copper busbars cutting, punching and bending in the construction process of electrical cabinets and low voltage panels, Grangier Constructeur offers its new « DUO » workbench, consisting of a multifunctional punch-and-bend table, allowing quick and easy work on rigid or flexible copper and aluminum bars.

The end-stops and holders integrated into the workbench facilitate the installation and manipulation of the bars ; the folding head and the cutting / punching machine each have their own footswitch up/down.

It takes 10 seconds to mount lasting and robust set of cutting blade or tooling laminated / flexible bar. Wrench or screwdriver isn’t required.

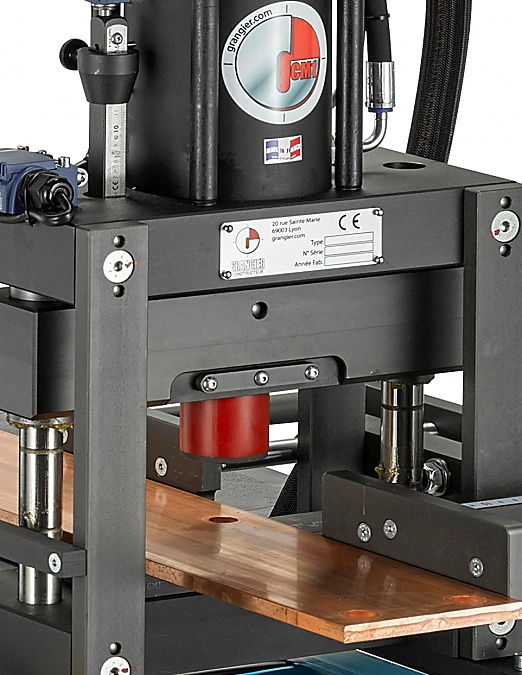

Punches have a retractable center pin which facilitates drilling following a path. Punches are available from Ø5 to Ø18 sizes, and oblong 7x16 to 13x16.

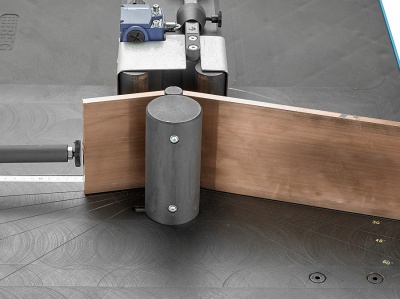

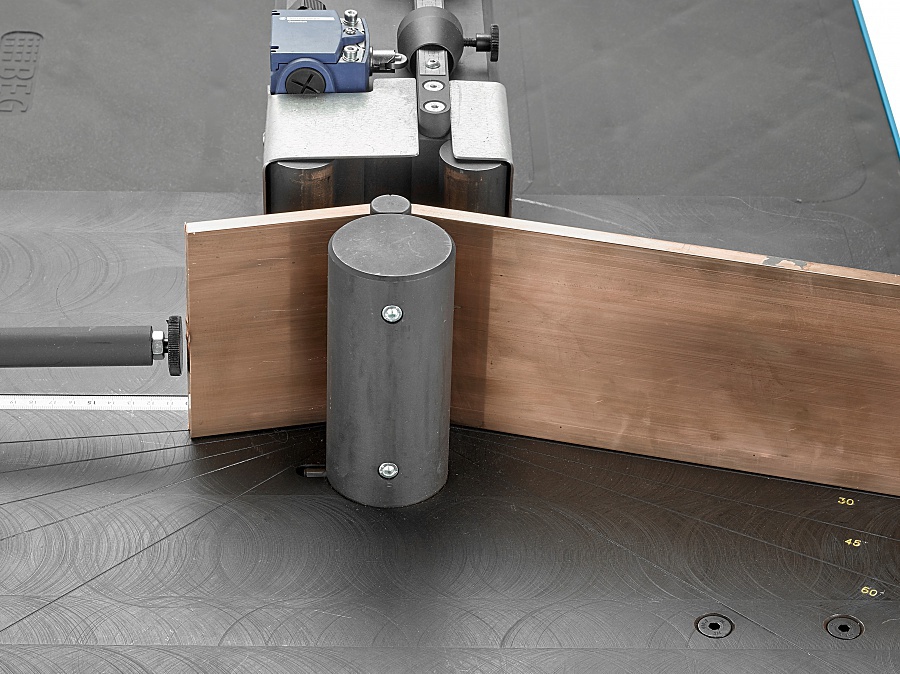

The bending machine has a large platform with etched angle line 15/30/45/60/90 degrees and an electric and adjustable stop.

The « DUO » workbench is available in standard version for busbars up to 125x10 mm ; sturdy and removable casters are provided to make the workstation mobile.

For busbars up to 200x10 mm, an heavy duty DUO workbench is also availablE
