Portable electro-hydraulic pump for punching doors, panels, enclosures and sheet metal in steel, stainless steel, aluminium and plastics

PORTABLE HYDRAULIC PUMP FOR AKKU PUNCH

Hydraulic pump for AKKU PUNCH with battery

The AKKU-PUNCH is an electro-hydraulic pump to drive Tristar and Tristar Plus punches, as well as all punches compatible with "Green-Lee" threads, in the punching of doors, panels, boxes and sheets in steel, stainless steel, aluminium and plastics.

The 18V 3Ah Li-Ion battery recharges in up to 22 minutes (empty battery)

Space-saving punching head can be rotated 360 degrees


Other technical characteristics:

  • Punching force: 60KN max
  • Allows to operate punches up to 138x138 mm in medium-hard steel sheet, maximum thickness 2 mm
  • Weight: 2 Kgs

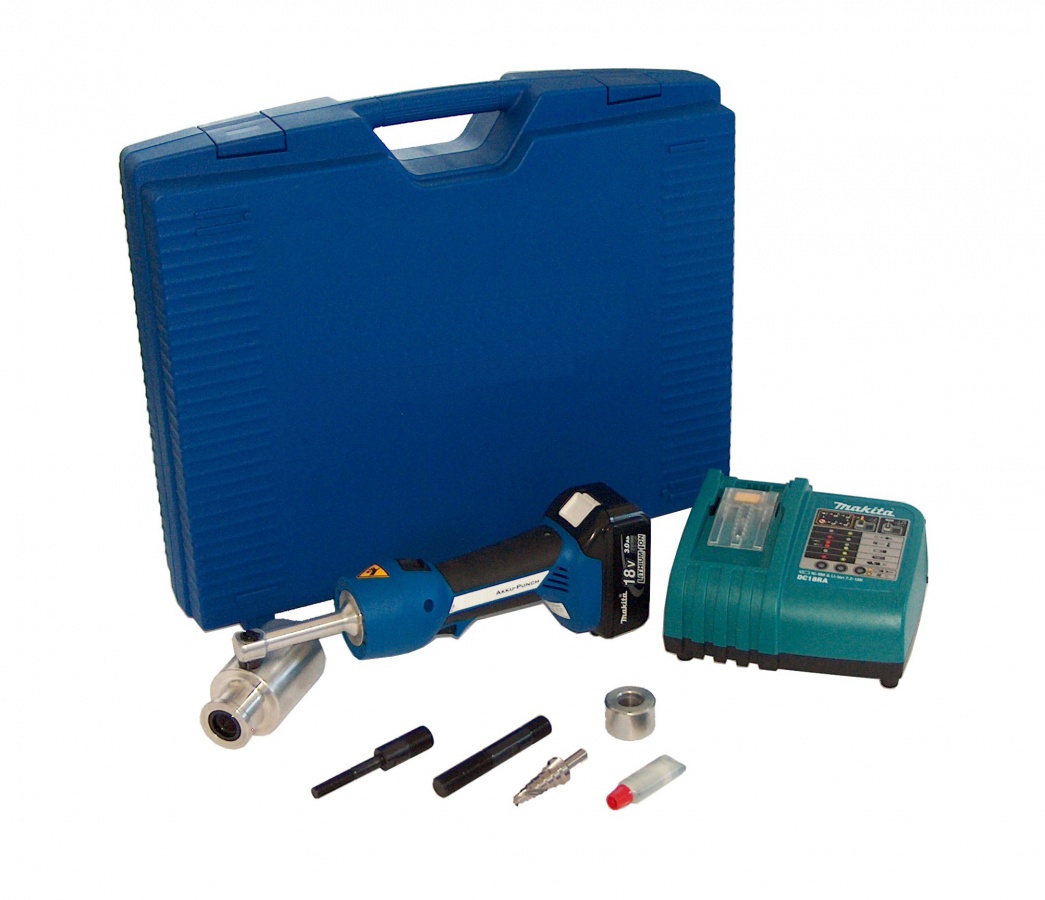

  • Delivered in a sturdy plastic case, with 1 battery, charger, pre-drilling step drill, 9.5mm and 19mm pins, 1 tube of grease
