PUNCHING CYLINDER FOR PUNCHING MACHINES WITH HYDRAULIC FOOT PUMP

This punching box allows easy operation of the largest punches (150x150 max.) used in cable workshops and on site.
The foot pump leaves the cable worker's hands free to hold the punch and the pulling cylinder
Also works very well with small punches Ø22.5 and others.

TECHNICAL CHARACTERISTICS:

• Maximum punching force: 75 KN
• Threaded cylinder for standard rod Ø19 "USA" thread (3/4 - 16 UNF)

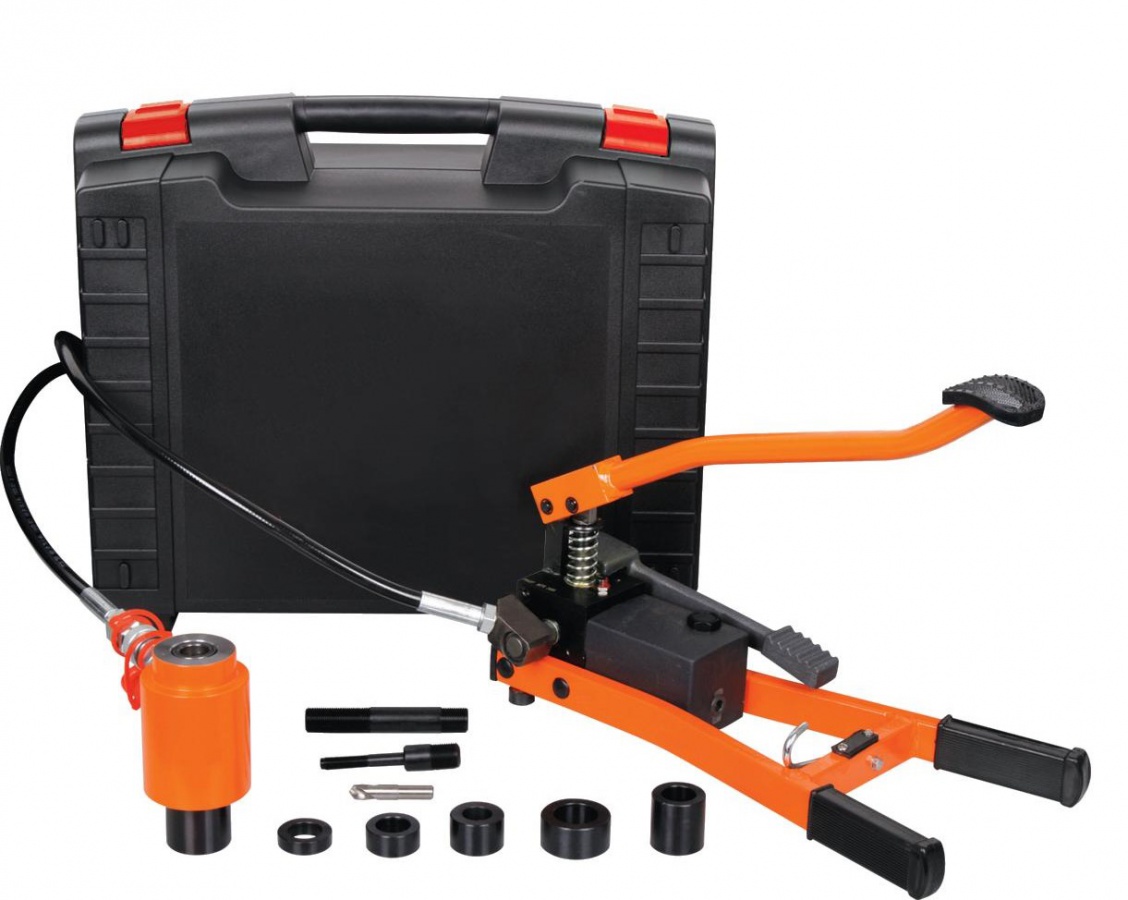

• Plastic case containing: 1 foot pump, 1 hose 2.8 m, 1 cylinder with quick coupling,
• 1 x 19 mm shaft, 1 x 9.5 mm shaft with Ø 19 adaptor, 1 pre-drilling bit, 5 spacers.
• Total weight: 14 KGS Cylinder weight: 1.5 KGS
