PH1-160 Hydraulic bending machine for copper busbars up to 160x10mm
Hydraulic bending machine for copper busbars
Consult the table of machine and tooling products:
Easy machine to use, with electric triggering stop for repetitive folds, main angles engraved on the working surface, extendable support arm to hold long bars.
Operated by CME electro-hydraulic unit (same as "Cisabarre CM1").
Technical specifications
- Machine to be placed on a workbench
- Weight : 140 KGS
- Dimensions (without the support arm): 900X520X320mm
- Maximun size of the bars to be bent: 200X10 mm
- Minimum distance between two opposite 90° bends : 65 mm
- Power pack CME 240 V, 160 bars, single phase motor 1.1KW
RELATED PRODUCTS
- Combined shearer CM1-200
- Combined shearer CM1-125
- Hydraulic Folding Machine PH1-125
- Electro-hydraulic power pack CME
- Combo CM1+PH1 on bench
- Duo CM1+PH1 on bench
PH1-160 BENDING MACHINE AND ACCESSORIES
PH1 and ACCESSOIRES | |
DESCRIPTION | REFERENCES |

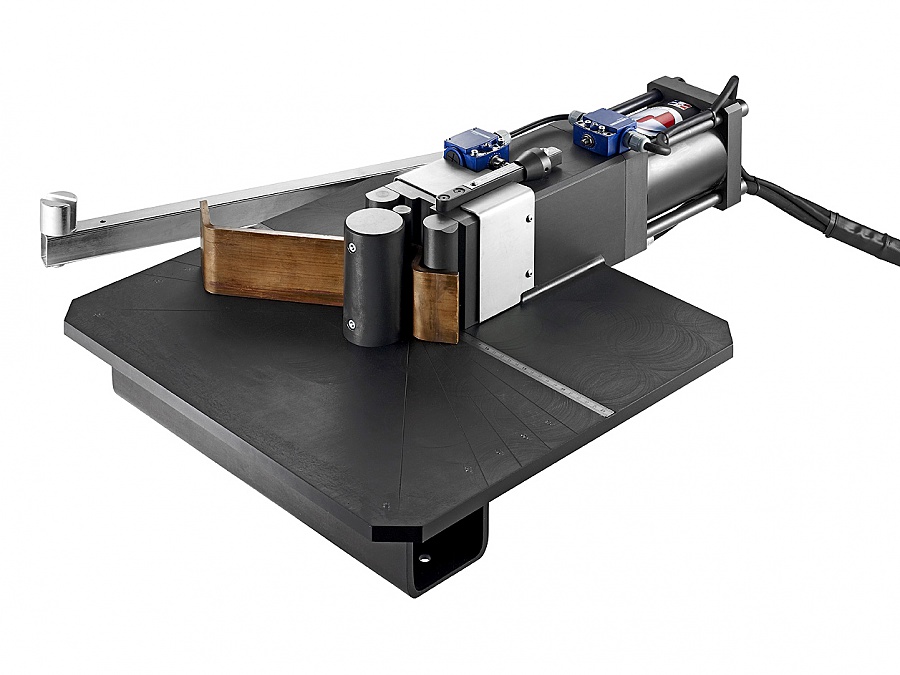

BENDING BENCH : | PH1-160 |
double acting cylinder, electric stop for bending, | |
busbar size: up to 160x10 mm smallest Zbending :55mm | |

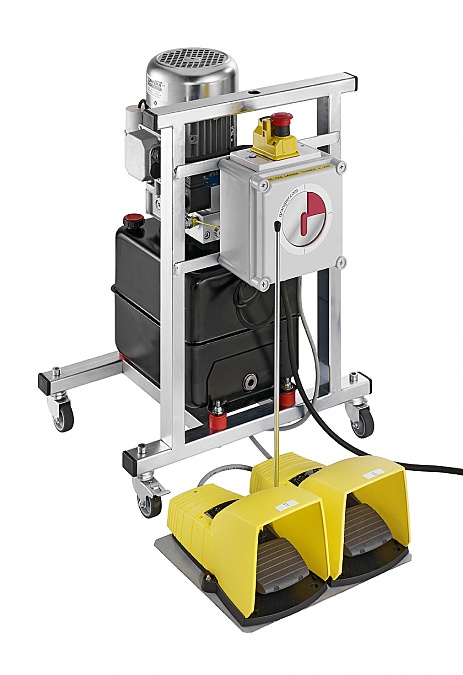

HYDRAULIC UNIT : | CME |
On movable frame , tank with15 liters of oil, 160 bars, 240 volts, | |
2 electrical footswitches for double acting cylinder. | |

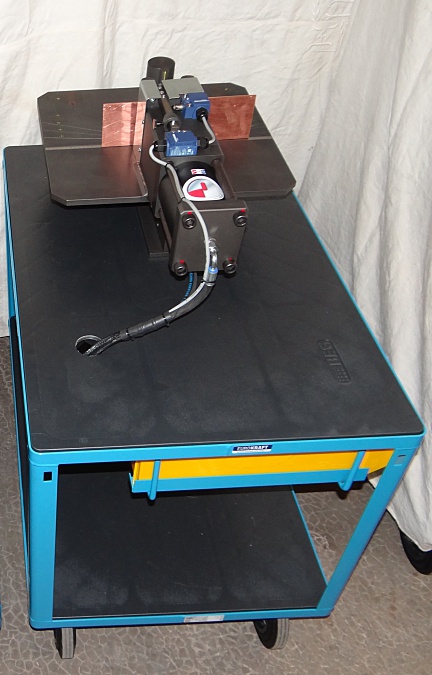

WORKBENCH on wheels | ETPH1-160 |
